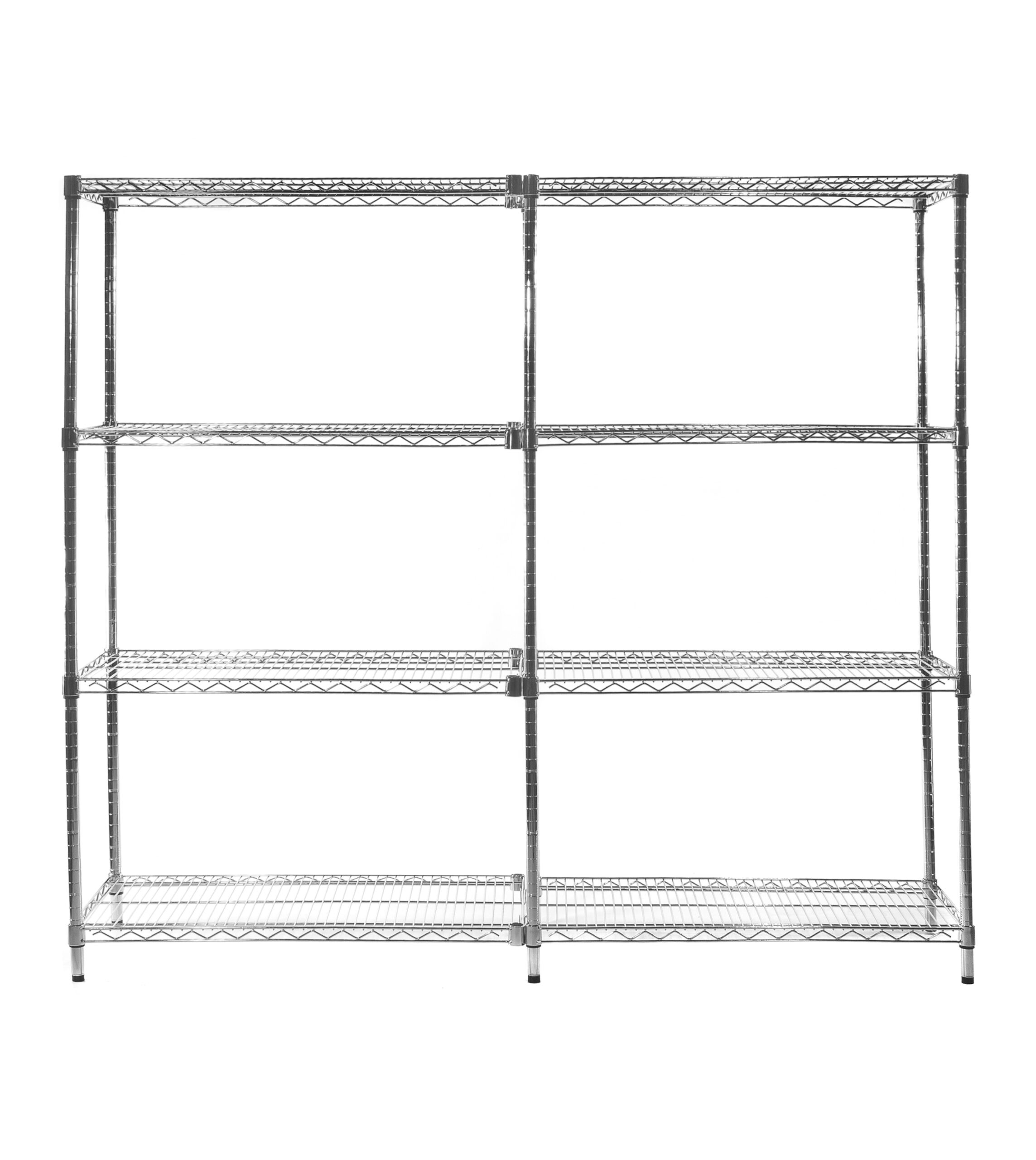

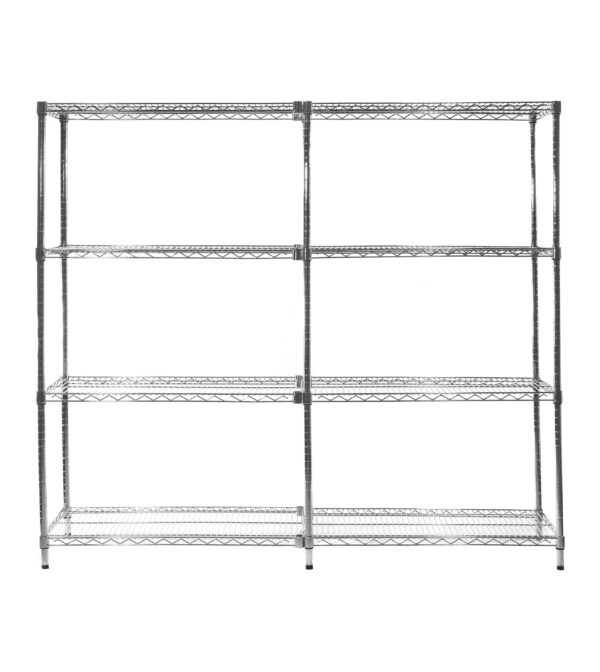

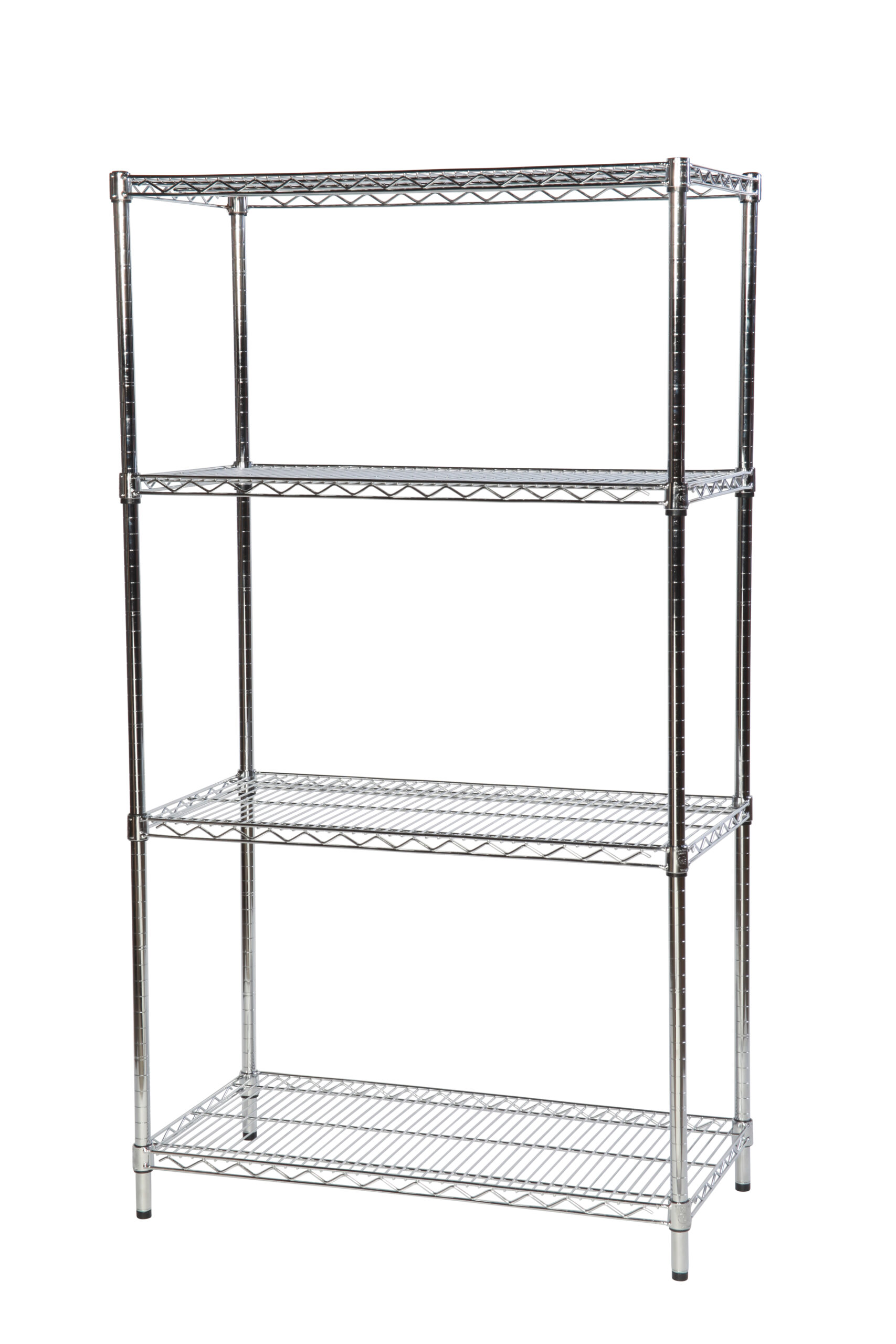

Eclipse Chrome Racking for Vertical Farming

HOME » » Racking, Benches & Trays » Racking » Eclipse Chrome Racking for Vertical Farming

The Eclipse Chrome is an extremely tough and hard wearing racking option for vertical farming, which is finished in blue chrome and can manage loads up to 300 kg. It has fully adjustable shelf heights and is available in 4 depths, 5 widths, and 3 heights (see the below table for full breakdown), meaning this system has sufficient flexibility to fit any grow room or plant cultivation environment.

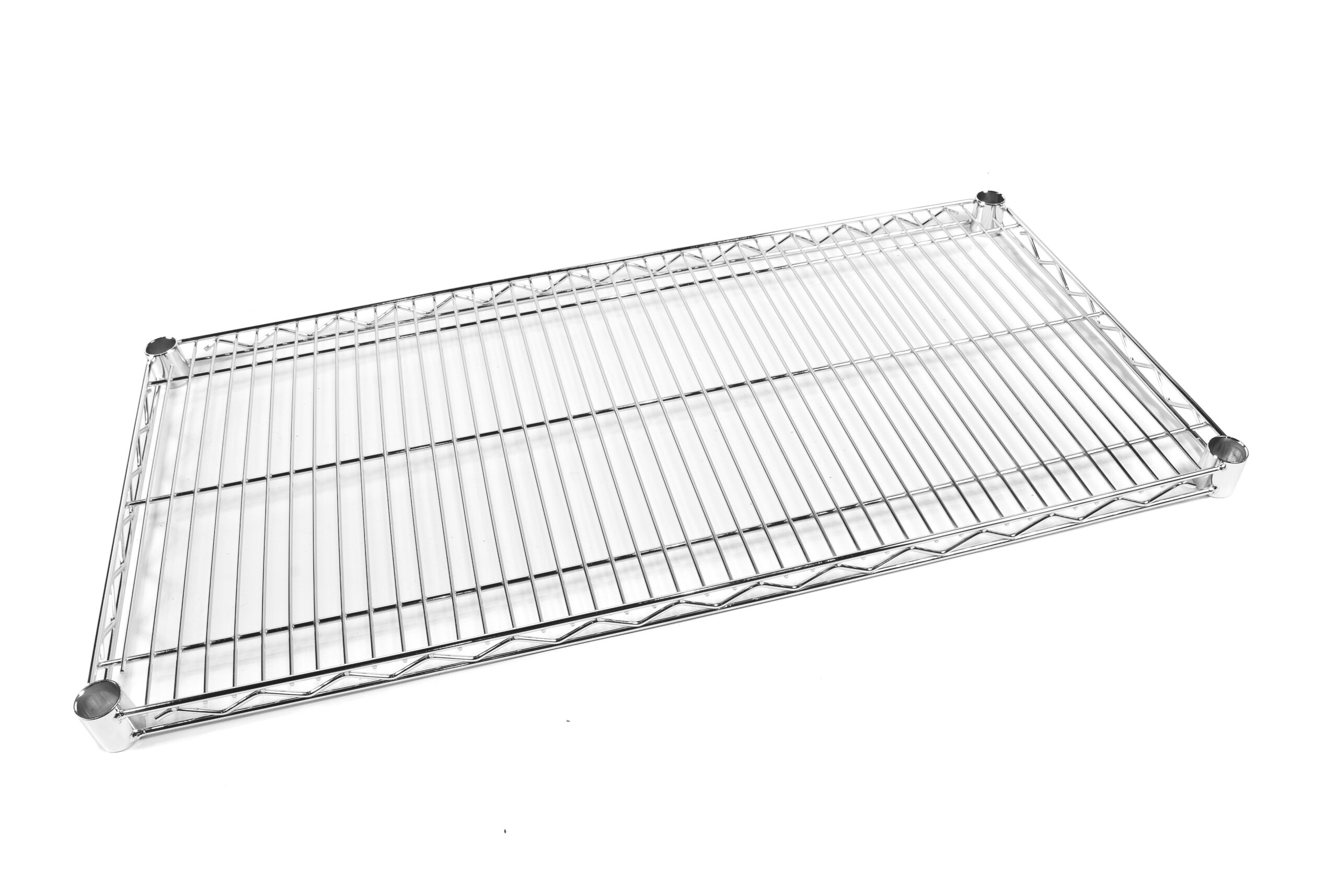

The open wire design of the Eclipse Chrome offers excellent airflow across the growing area, and sufficient flexibility to attach any additional grow rack components such as LED grow lights or any necessary piping and cabling needed to optimise your system.

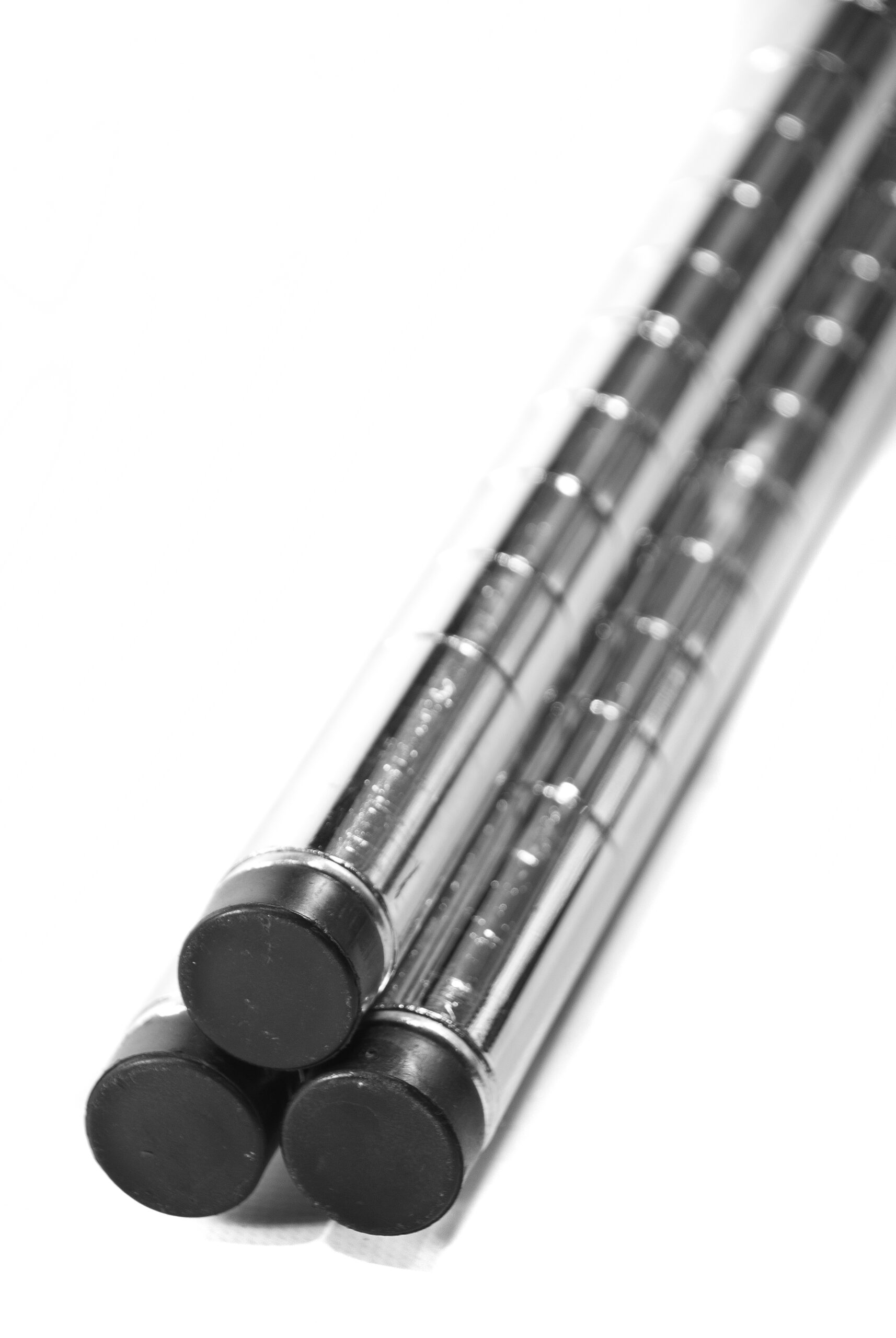

This racking system is designed for use in food production and food storage systems, and is manufactured from corrosion resistant materials, making it ideal for the challenges presented in horticultural production systems.  All standard units include 4 uprights with adjustable feet, 4 shelves and plastic collars. Add-on bays include 2 uprights 4 shelves and 8 add on clips to connect to the starter bay. The frames can be wiped clean with a dry cloth. If a damp clean is required, ensure the area is dried well. Do not use corrosive or abrasive cleaners on the frames.

The Eclipse Chrome racking system is extremely quick and easy to erect, it can be assembled without the need for specialist tools (though a rubber mallet is advised). It offers the option to be either free standing, or to add castors/wheels to allow easy movement within your grow room. This system can also be expanded easily by adding additional sections, so as your growing enterprise develops, you can add additional grow space with ease. Swivel castors are available in 75 mm, 100 mm and 120 mm sizes.

Racking size options:

  • Depths: 305, 355, 460, 610 mm
  • Widths: 610, 760, 915 , 1070, 1220, 1370, 1520, 1820 mm
  • Heights: 1620, 1820, 2130 mm



  • Quick and easy to assemble – bolt free and no specialist tools required
  • Open-wire design, allowing for excellent air flow and light penetration
  • Fully adjustable – shelf heights every 25mm
  • Strong and robust: up to 300kg shelf load capacity
  • Highly durable, finished in blue zinc
  • Innovative design- reduce costs and improve access by using add-on units
  • Conforms to NSF/ANSI standard 2
  • Available in 87 size combinations
  • Materials-
    • Outer wires 5.8mm thick
    • Cross wires 4.3mm thick
    • Main wires 3.3mm thick
