Tefen MixRite TF10 0.2-2% Dosing Pump

HOME » Home » Hydroponics & Irrigation » Fertigation & Nutrient Dosing » Dosing Pumps » Tefen MixRite TF10 0.2-2% Dosing Pump

Tefen’s MixRite line of water driven proportional dosing pumps are used to ensure precise additive injection directly into the water or fluid line under various flow rates, feed ratios and different ranges of pressure.

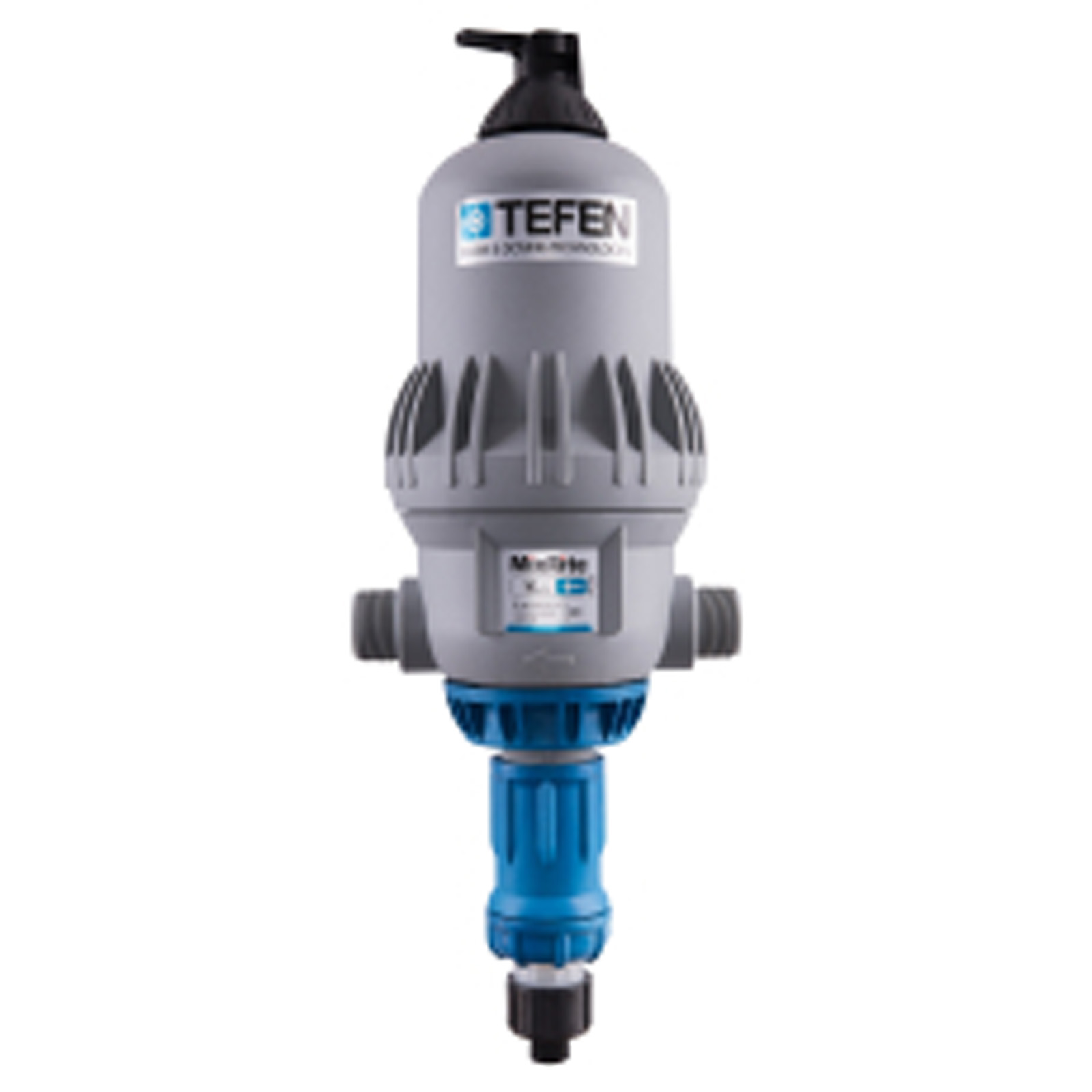

TF10 0.2-2% Dosing Pump is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates. The MixRite allows the application of fertilizer and chemicals through an irrigation system. This technique can reduce fertilizer application costs. It may also improve nutrient efficiency by applying them closer to when and where plants need them.

MixRite pumps start working automatically when water flows in, and stop when the flow stops. It is possible to stop the suction operation when using a model with an on/off system. These injectors are extremely durable, manufactured from engineered composite materials to withstand the rigors of the elements, as well as chemicals and acids for injection.

Tefen offers the MixRite pumps for a variety of applications including cost-effective fertilizing and pest control for crops and plants. Tefen’s injectors are adaptable and simple to use, and provide a long-lasting solution for your needs.

Tefen’s MixRite dosing pumps are a simple, user friendly and ingenious system that has demonstrated its value in over 90 countries.



Suitability:

  • Grow-rooms
  • Controlled environment agriculture (CEA) facilities
  • Commercial grow operations
  • Greenhouses and nurseries
  • Vertical farming
  • Indoor farming
  • Urban farming



Features:

  • Mixes additive and water precisely
  • The dosage can be adjusted easily and quickly
  • Key internal parts are from the highest quality material available (Hastelloy spring, Viton Rubber seal)
  • Easy to install
  • No electricity needed
  • Easy to adjust dosing percentage
  • Replaceable seals
  • Works at very low flow rate
  • Easy to field repair
  • Highly chemical resistant
  • Perfect blending
  • Highly resistant to UV



Attributes:

MixRite TF-10 0.2-2% MixRite TF-10 1-5% MixRite TF-25 (0.3-2.5%) MixRite TF-25 (1-5.5%) MixRite TF-5 0.2-2% MixRite TF-5 0.5-5%
Material PP+FG PP+FG PP+FG PP+FG PP+FG PP+FG
Thread Type BSP BSP BSP BSP BSP BSP
MixRite Type STD STD STD STD
Working Pressure ‎1–8 bar ‎1–8 bar ‎1–8 bar ‎1–8 bar 1-8 bar 1-8 bar
Thread Size 1 1/2″ 1 1/2″ 2″ 2″ 1″ 1″
Water Pressure ‎1–8 bar [14.5 to 116 psi] ‎1–8 bar [14.5 to 116 psi] ‎1–8 bar [14.5 to 116 psi] ‎1–8 bar [14.5 to 116 psi] ‎1–8 bar [14.5 to 116 psi] ‎1–8 bar [14.5 to 116 psi]
Dimensions 13.3″ × 45.1″ 13.3″ × 45.1″ 13.3″ × 52.2″ 13.3″ × 52.2″
Weight 16.3 pound [7.39 kg] 16.3 pound [7.39 kg] 34.2 pound [15.51 kg] 34.2 pound [15.51 kg]
Min Pressure Loss 1 bar 1 bar 1 bar 1 bar
Max Pressure Loss 8 bar 8 bar 8 bar 8 bar
ON OFF System Yes [Manual] Yes [Manual] No [Air Release] No [Air Release] Yes [Manual] Yes [Manual]
Air Release Yes Yes Yes Yes
Chemical Bypass Standard Standard Standard Standard
Dosage Rate ‎0.2%–2% ‎1%–5% ‎0.3%–2.5% ‎1%–5.5% ‎0.2%–2% ‎0.5%–5%
Chemical Resistance Standard Standard Standard Standard
Foot Valve Optional Optional Optional Optional
Connection Type Threaded Threaded Threaded Threaded Threaded
Min Injection Per Hour 0.1 l/h [0.026 gph] 0.5 l/h [0.132 gph] 0.6 l/h [0.159 gph] 2.0 l/h [0.53 gph] 0.1 l/h [0.26 gph] 0.25 l/h [0.066 gph]
Max Injection Per Hour 200 l/h [53 gph] 500 l/h [132.5 gph] 625 l/h [165.4 gph] 1375 l/h [364 gph] 100 l/h [26.42 gph] 250 l/h [66 gph]
Flow Rate Range ‎50–10000 l/h [0.2 to 45 gpm] ‎50–10000 l/h [0.2 to 45 gpm] ‎200–25000 l/h [0.9 to 110 gpm] ‎200–25000 l/h [0.9 to 110 gpm] ‎50–5000 l/h [0.22 to 22 gpm] ‎50–5000 l/h [0.22 to 22 gpm]
With Legs Optional Optional Yes Yes Optional Optional

inc. VAT

£1,525.99
