Tefen’s MixRite line of water driven proportional dosing pumps are used to ensure precise additive injection directly into the water or fluid line under various flow rates, feed ratios and different ranges of pressure.

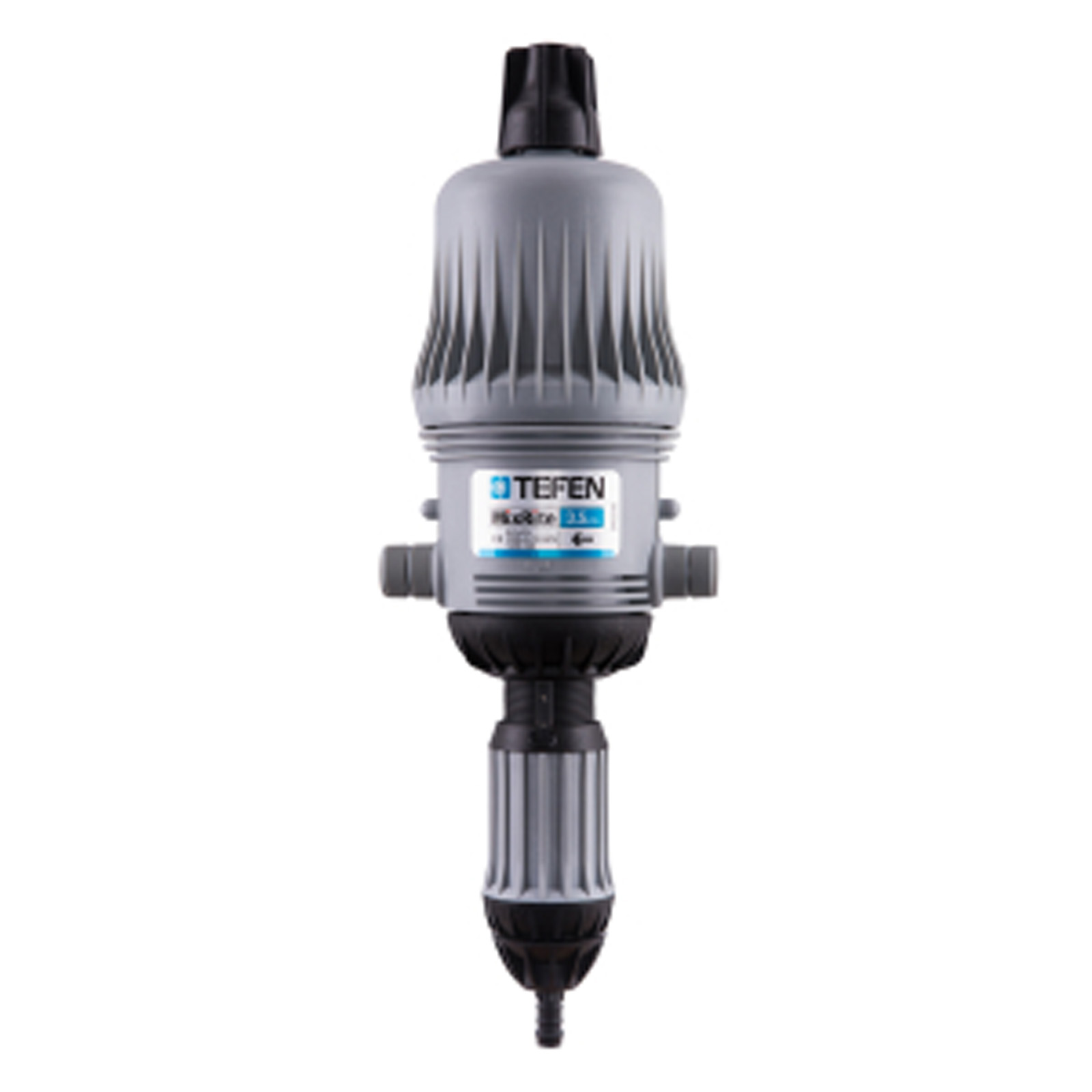

MixRite 2.5 Dosing Pump is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates. The MixRite allows the application of fertilizer and chemicals through an irrigation system. This technique can reduce fertilizer application costs. It may also improve nutrient efficiency by applying them closer to when and where plants need them.
MixRite pumps start working automatically when water flows in, and stop when the flow stops. It is possible to stop the suction operation when using a model with an on/off system. These injectors are extremely durable, manufactured from engineered composite materials to withstand the rigors of the elements, as well as chemicals and acids for injection.
Tefen offers the MixRite pumps for a variety of applications including cost-effective fertilizing and pest control for crops and plants. Tefen’s injectors are adaptable and simple to use, and provide a long-lasting solution for your needs.
Tefen’s MixRite dosing pumps are a simple, user friendly and ingenious system that has demonstrated its value in over 90 countries.
|MixRite 1||MixRite 2.5||MixRite 3.5 (0.3-2%)||MixRite 3.5 (0.5-5%)|
|Working Pressure||0.2–8 bar||0.2–8 bar||0.2–8 bar||0.2–8 bar|
|Water Pressure||0.2–8 bar [3 to 116 psi]||0.2–8 bar [3 to 116 psi]||0.2–8 bar [3 to 116 psi]||0.2–8 bar [3 to 116 psi]|
|Dimensions||22″ × 7.27″|
|Weight||4 pound [1.81 kg]|
|Min Pressure Loss||0.3 bar|
|Max Pressure Loss||1.5 bar|
|ON OFF System||Yes [Manual]||No [Air Release]||Yes [Manual]||Yes [Manual]|
|Dosage Rate||0.2% [Fixed Rate]||0.3%–2%||0.3%–2%||0.5%–5%|
|Min Injection Per Hour||0.04 l/h [0.01 gph]||0.06 l/h [0.016 gph]||0.03 l/h [0.008 gph]||0.05 l/h [0.013 gph]|
|Max Injection Per Hour||2 l/h [0.53 gph]||50 l/h [13.21 gph]||70 l/h [18.5 gph]||175 l/h [46.23 gph]|
|Flow Rate Range||20–1000 l/h [0.09 to 4.4 gpm]||20–2500 l/h [0.088 to 11 gpm]||10–3500 l/h [0.04 to 15.5 gpm]||10–3500 l/h [0.04 to 15.5 gpm]|
