Master XL61 – Infrared Oil Heater

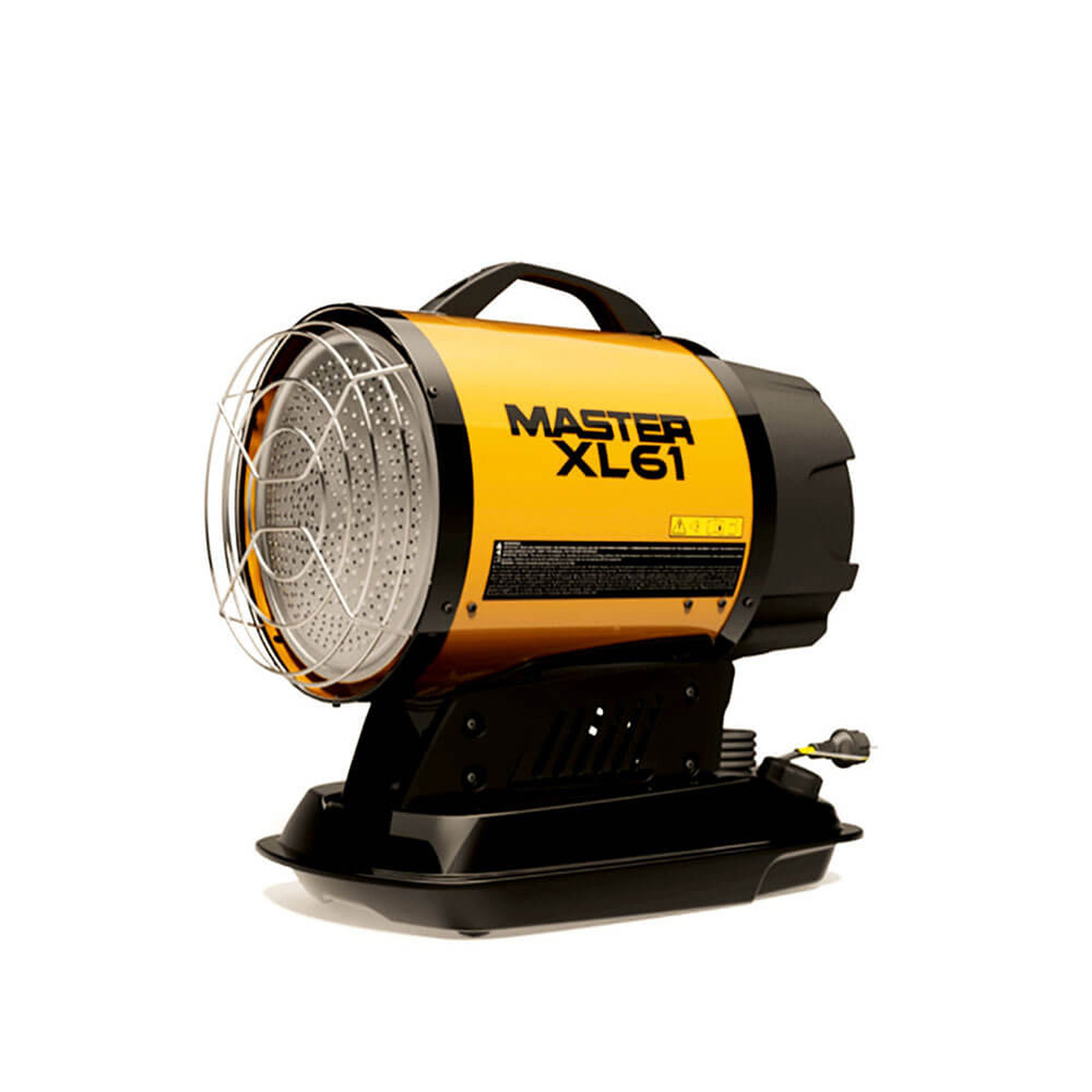

The XL 61 infrared oil fired heater with Master burner.

Infrared oil heaters deliver heat fast and exactly to the place where it is required without any air movement. They are excellent at providing direct heat with minimal air disturbance.

Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for the direct application of targeted heat, such as for drying or wetness evaporation.

As with all Master heaters, the XL 61 is plug and play: they do not need installation. They are portable, can warm up very quickly, and can be controlled by a remote thermostat. Master heaters are designed to minimise environmental impact, they are robust and designed to last many years. Spare parts are also available for at least 10 years, increasing life expectancy. Master offers a 3-year warranty on all products for peace of mind.



  • Greenhouses and nurseries
  • Commercial grow operations
  • Grow-rooms
  • Controlled environment agriculture (CEA) facilities
  • Vertical farming
  • Indoor farming
  • Urban farming



  • Low noise
  • Infrared heating (short wave)
  • No air flow
  • Electronic flame control with photocell
  • Post-ventilation
  • Standard oil level indicator

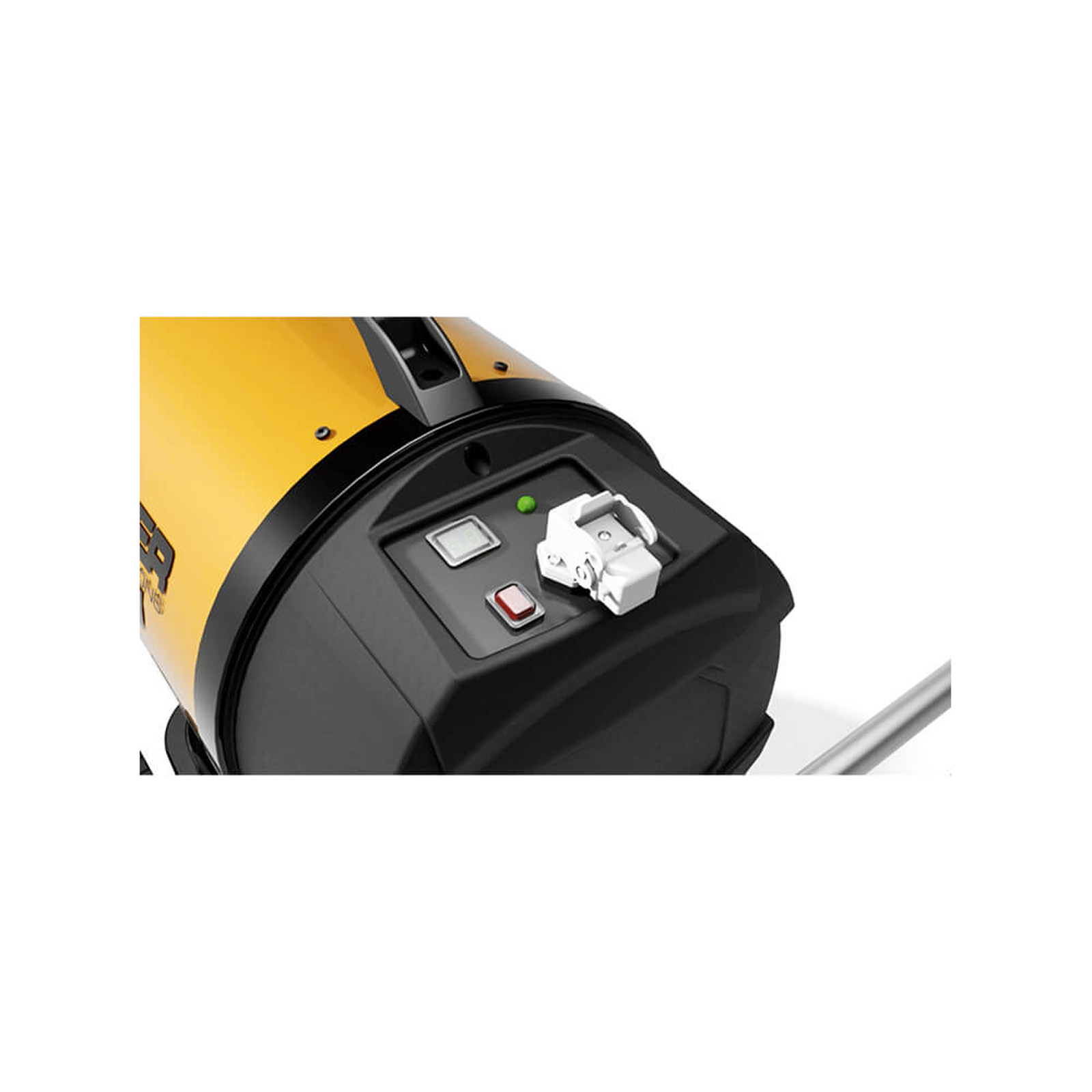

  • ILME socket for remote thermostat: analogue or digital
  • Suction filter and inlet filter
  • Snorkel
  • Overheat thermostat
  • Anti-tilt switch



Heating power kW 17
Heating power Btu/h 58000
Heating power kcal/h 14600
Fuel consumption l/h 1.35
Fuel autonomy h 7
Thermostat control Analogue or digital
Electric power kW 0.2
Power supply V/Hz 220-240/1ph/50
Rated current A 0.85
Tank capacity l 11
Product size (l x w x h) mm 560 x 345 x 575
Box size (l x w x h) mm 600 x 380 x 580
Net/gross weight kg 19/21
Pallet pcs 12
110 V available
