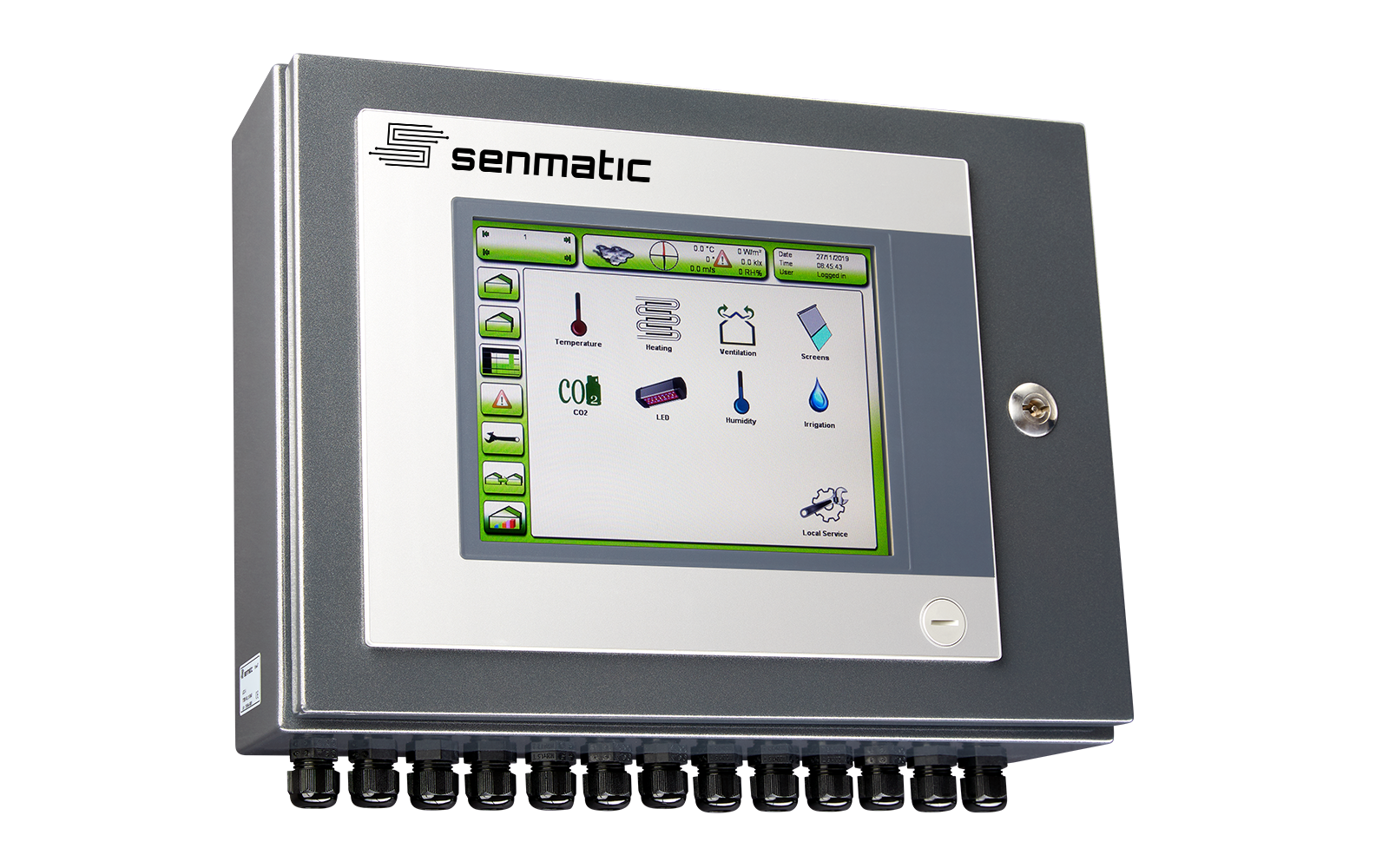

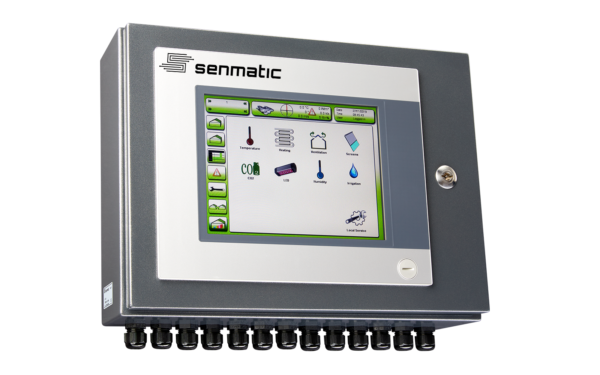

LCC4 – Climate Control Computer

The LCC (Logic Climate Control) series from DGT by Senmatic offers extraordinary levels of control and precision, sufficient to run a major horticultural production enterprise, regardless of the required/desired grow-environment variables, with maximum efficiency.

The LCC4 climate computer can control all climate functions for up to 16 different compartments. It is based on state-of-the-art technology and an advanced operating system and is easy to update and expand with more functions and capacity, futureproofing against business change or expansion. The LCC4 communicates via Ethernet with the installed expansions, and this ensures a great degree of flexibility in connection with future expansions.

The flexible composition of the hardware in the LCC4 makes it possible to choose sensors that are exactly optimal for each production system. It is also possible to use more than one of each sensor in each room, offering a level of flexibility sufficient to ensure the highest rates of accuracy and safety.

When developing LCC4, DGT by Senmatic’s primary focus was to achieve a simple user interface without compromising the setting options. Through collaboration with major growers, they have created a control system with extreme user-friendliness. LCC4 features a touch screen, which can be customised and individualised to ensure the computer interface is as simple and logical as possible for the grower.





Energy saving climate control

The LCC climate computer can divide 24 hours into 6 time zones with optional automatic correction, depending on sunset and sunrise. For the LCC4, DGT by Senmatic have developed a new Energy Balance Model. The model calculates the energy demand based on the K-factor of the greenhouse and the screens, the change-rate of air and the energy added by artificial lighting. The model ‘recognises’ the greenhouse and the energy demand, which ensures a better and more stable regulation also known as “feed forward regulation”.



Common and individual control

LCC4 can control up to 16 compartments and each compartment can be divided into two subzones, depending on the function. All functions can have common set points. It is also possible to have local set points in the subzones. These can be dependent or independent of the common set points. This gives a simpler operation of the computer and at the same time makes it possible to adapt the conditions to the different cultures.

With the LCC4, growers can control grow environment variables including internal climate and irrigation, as well as adjusting DGT by Senmatic’s LED fixtures, allowing dimming and spectral modification. Ventilation can also be controlled in greenhouse or suitable grow-room systems with cascade vent control. This system opens the lee side and the wind side at the same time. The wind side is opened only slightly, while the lee side is opened as much as needed. This cascade control of vents gives an effective ventilation in greenhouse environments, even at small vent opening percentages.



Suitability:

• Grow-rooms
• Controlled environment agriculture (CEA) facilities
• Commercial grow operations
• Greenhouses and nurseries
• Vertical farming
• Indoor farming
• Urban farming



Features:

• For up to 16 compartments
• Distributed I/O, flexible for present
• Industrial PLC technology and modular hardware/soft- ware
• 6 time zones with separate settings for temperature, humidity, light addition and CO2
• Advanced control when using more than one sensor in one compartment and future installations/expansions
• No software cost when adding new compartments
• Increase production output and yield and improve growing precision through accurate control
• Prevent waste of energy and resources
• Quick change between more languages on the user-friendly 10.4” TFT colour touch display
• Software for DGT by Senmatic by Senmatic’s LED fixtures is included
• Access from mobile devices
• Can be connected to SuperLink for further analysis of data
• More LCCs can be connected in a network
• Suitable for many different business areas such as vertical farming, medical cannabis, commercial greenhouse and much more
• Get technical online support via internet



Further essential functions

• Heating valves: 4
• Vents: 4 (can be used for either a bipartie top ventilation or for top and side ventilation)
• Screens: 8
• CO2 control
• humidity: 2 (1 per sub-zone)
• Artificial light: 4 zones
• Time zones: 6 (4 day + 2 night)
• 3 steps of artificial lighting (HPS)
• Triple tariff
• Sub-zones: 2 – optimize your climate control by dividing the compartments into sub-zones
• Heating steps: 4 (2 per sub-zone) – on/off signal of e.g. a fan heater
• Vent step: 4 (2 per sub-zone) – on/off signal for control of e.g. a cooling unit
• Horizontal Air Fan (HAF): 2 (1 per sub-zone) – activated by temperature and humidity
• Negative diff.
• Irrigation valves: 1 (2-16 by purchased program)
• Irrigation program for 1 valve and supply pump
• Misting valves: Up to 8 – controlled by humidity
• Cooling step: 1 – on/off signal
• Ring main control
• Flexible I/O (input / output)
• Change of set-points on centrally placed LCC4 climate control

Expansion software

• Average temperature control
• Irrigation program for 2- 16 valves
• Super Step

Software for LED fixtures
Software for DGT by Senmatic’s LED fixtures is included

Weather station
One common weather station for the net of LCCs.
A weather station comes with wind direction and wind speed as standard. It can be expanded with a rain and light sensor.

Optional central control
LCC4 is a network model which communicates with SuperLink via Ethernet. SuperLink is used for further analysis of data

The use of more LCC4s
The LCC4 climate control can be used in many different installations, and more LCCs can be connected in a network.
